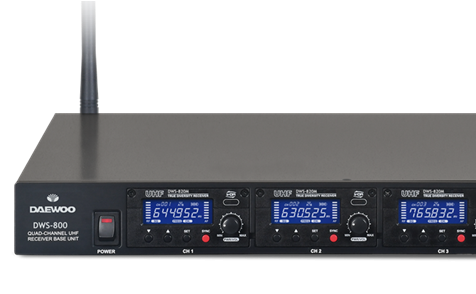

Convenient and User-Friendly design

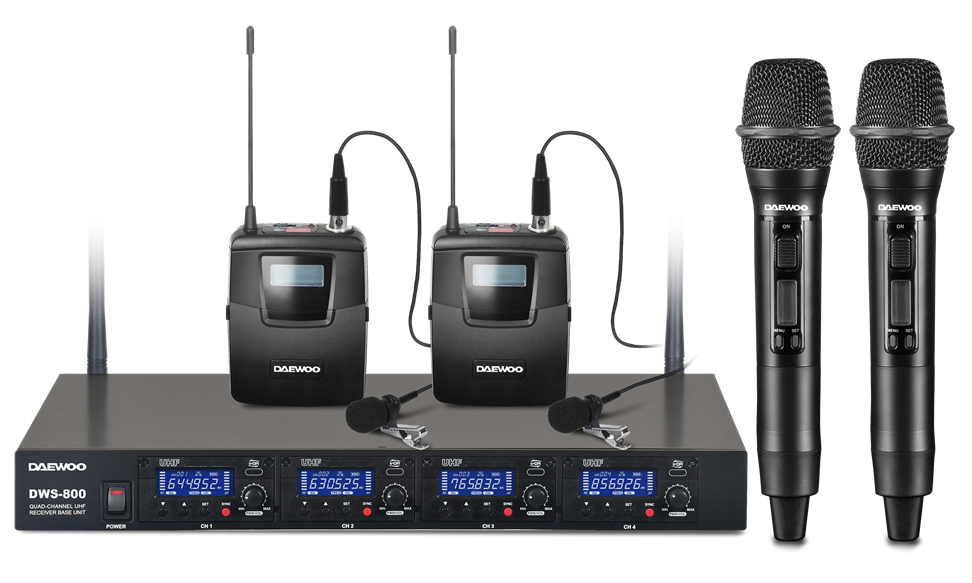

The DWS-804 features an intuitive control interface, allowing for easy adjustment of output volume for connected devices to MIC or LINE level. Users can effortlessly manage these devices of various configurations including handheld, bodypack transmitters, and receiver modules during presentations, lectures, and live events, enhancing the quality of interactivity and speaking engagements. In the large venue application, the DWS-804 can be customized ad-hoc with hot-swap modules on-fly to avoid interference of UHF frequencies and bands, fully expandable and feasible. The control interface is simple, making it accessible even for non-professional users.

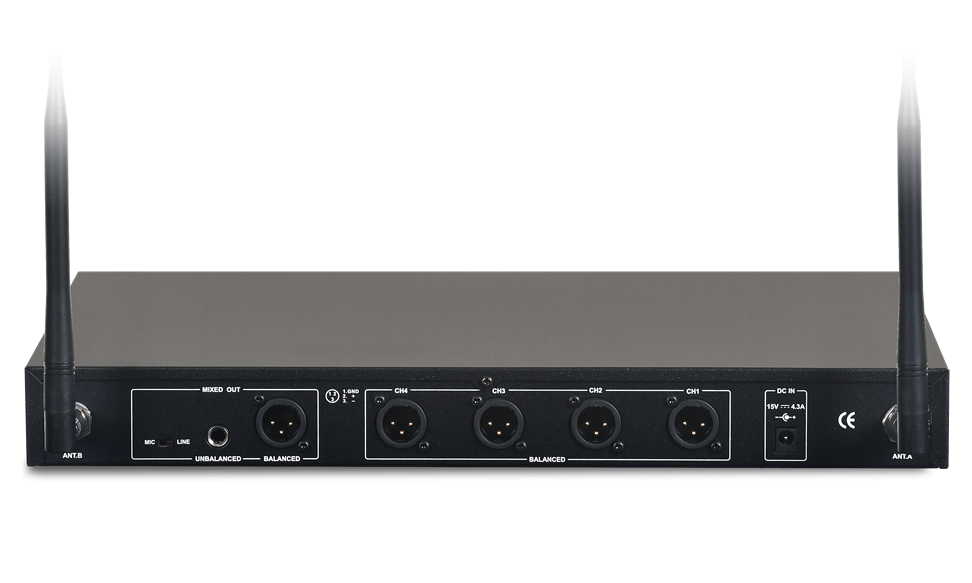

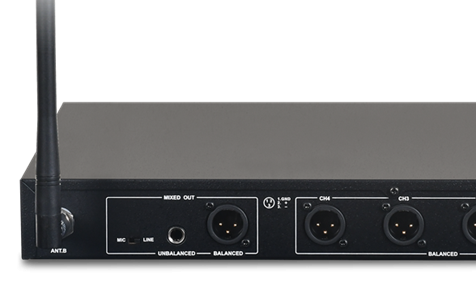

Easy connection with multiple audio output options
The DWS-804 provides single-channel balanced (XLR) and mixed unbalanced (Ø6.3mm) outputs, adapting to different audio equipment and application scenarios. Whether for cultural events or large speeches, it delivers clear and powerful audio output. This ensures long-term stability and reliability. Its multifunctional design and lightweight characteristics make it easy to carry and install, suitable for quick deployment needs, providing convenient audio solutions for various events.

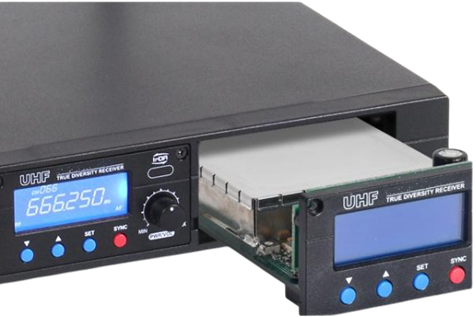

Great flexibility to meet various applications
The four-slot design of the DWS-804 offers high flexibility, allowing users to freely configure 1 to 4 modules according to their needs. Supported modules include:

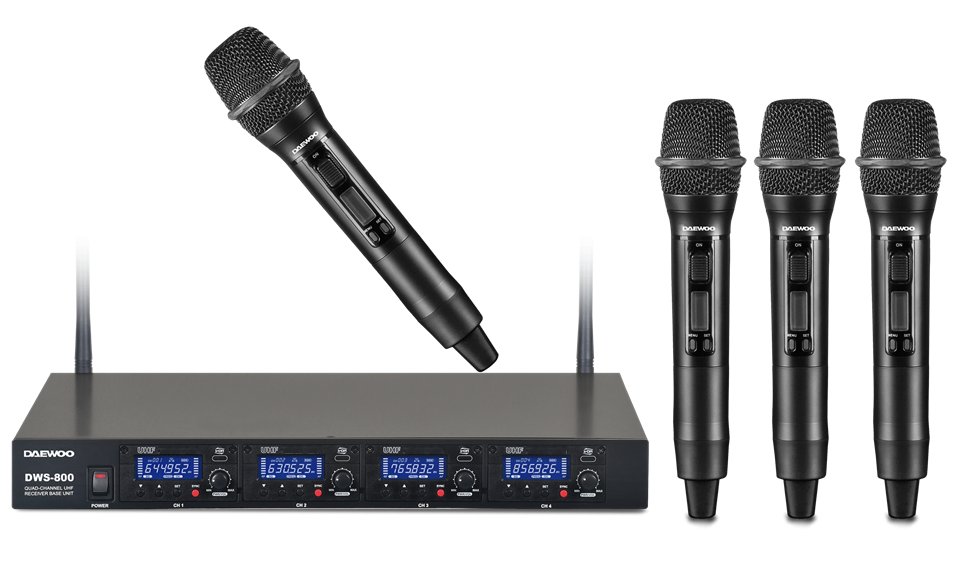

Wireless Receiver Module: DWS-820M comes with advanced auto-scanning features that quickly search and lock onto interference-free channels, ensuring stable performance. The advanced synchronization technology makes channel synchronization quick and easy, with one-click operation for two-way rapid channel synchronization. Suitable for conference rooms, auditoriums, and educational training. Whether in large business meetings or academic seminars, the DWS-804 can simultaneously connect up to four wireless microphones of any types, ensuring every speech is transmitted.
| Model | DWS-804 |
| Chassis | EIA standard 19" metal 1U |
| Channel | QUAD |
| Receiving antenna | Detachable at rear-end, TNC female. |
| Audio output | Balanced XLR and unbalanced Ø6.3mm |
| Audio Output Adjustment | Volume knob for adjustment of output volume |
| Output level switch | MIC-LINE |
| Power supply | 15V DC / 4.3A |
| Dimensions (mm) | 400 × 215 × 44 |
| Weight (kg) | 1.8 |
Compatible
DWS-83
DWS-82
DWS-81
DWS-FM801
DWS-AB80
DWS-AD50F
DWS-AD85
DWS-PAD70
DWS-RA80
DWS-DA80
DWS-820M
Accessories
DWS-HC92
