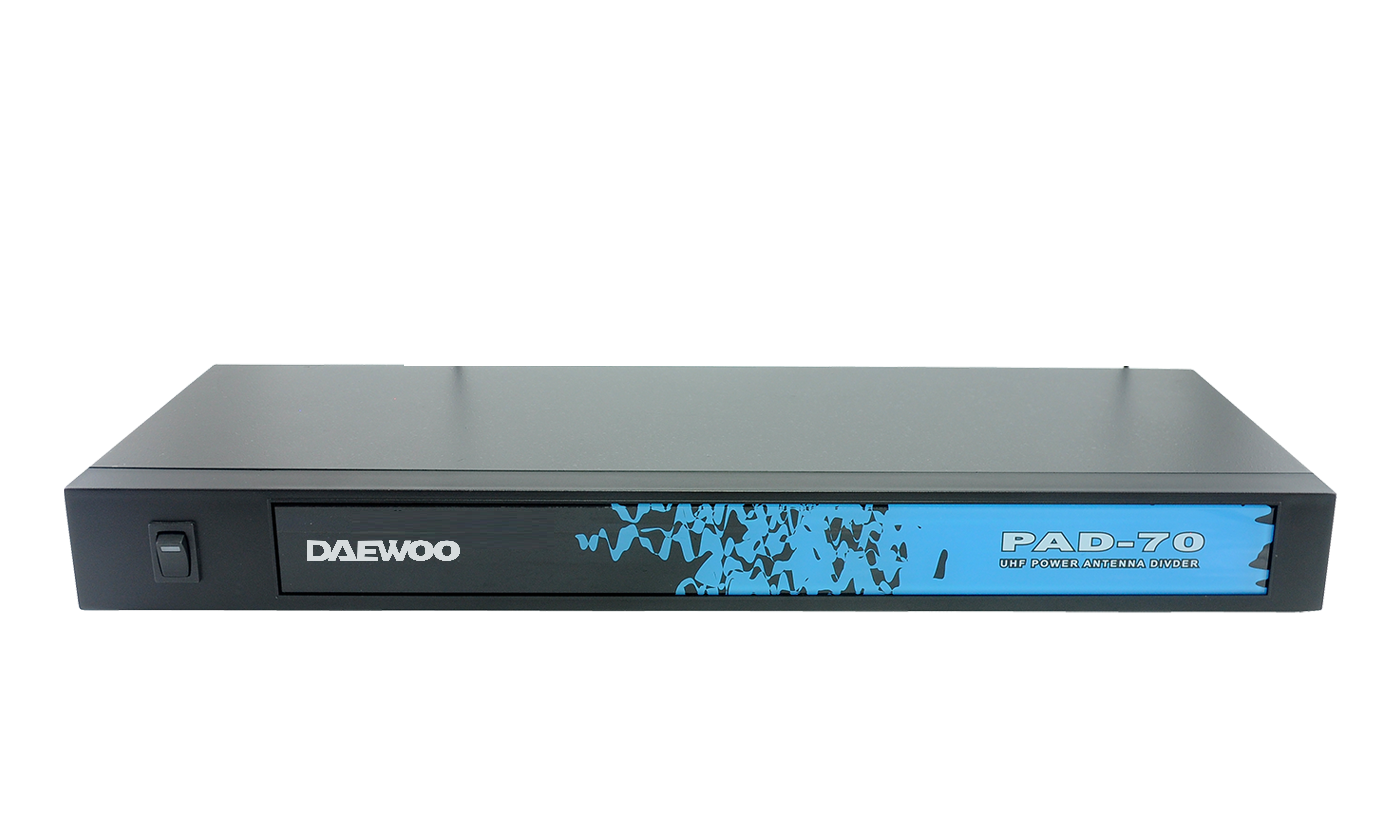

DWS-PAD70

UHF Wideband 4-Channel Antenna Divider with Power

The DWS-PAD70 is a wideband four-channel antenna distributor designed to integrate four wireless receiver antennas and provide power to four wireless receivers, covering UHF frequencies of 500-700 MHz or 700-960 MHz. It ensures stable and reliable signal distribution, making it ideal for various professional audio applications.

Tech specification

Model	DWS-PAD70
Frequency range	UHF 500 – 700 MHz or 700 – 960 MHz
Gain	0 dB ± 3 dB

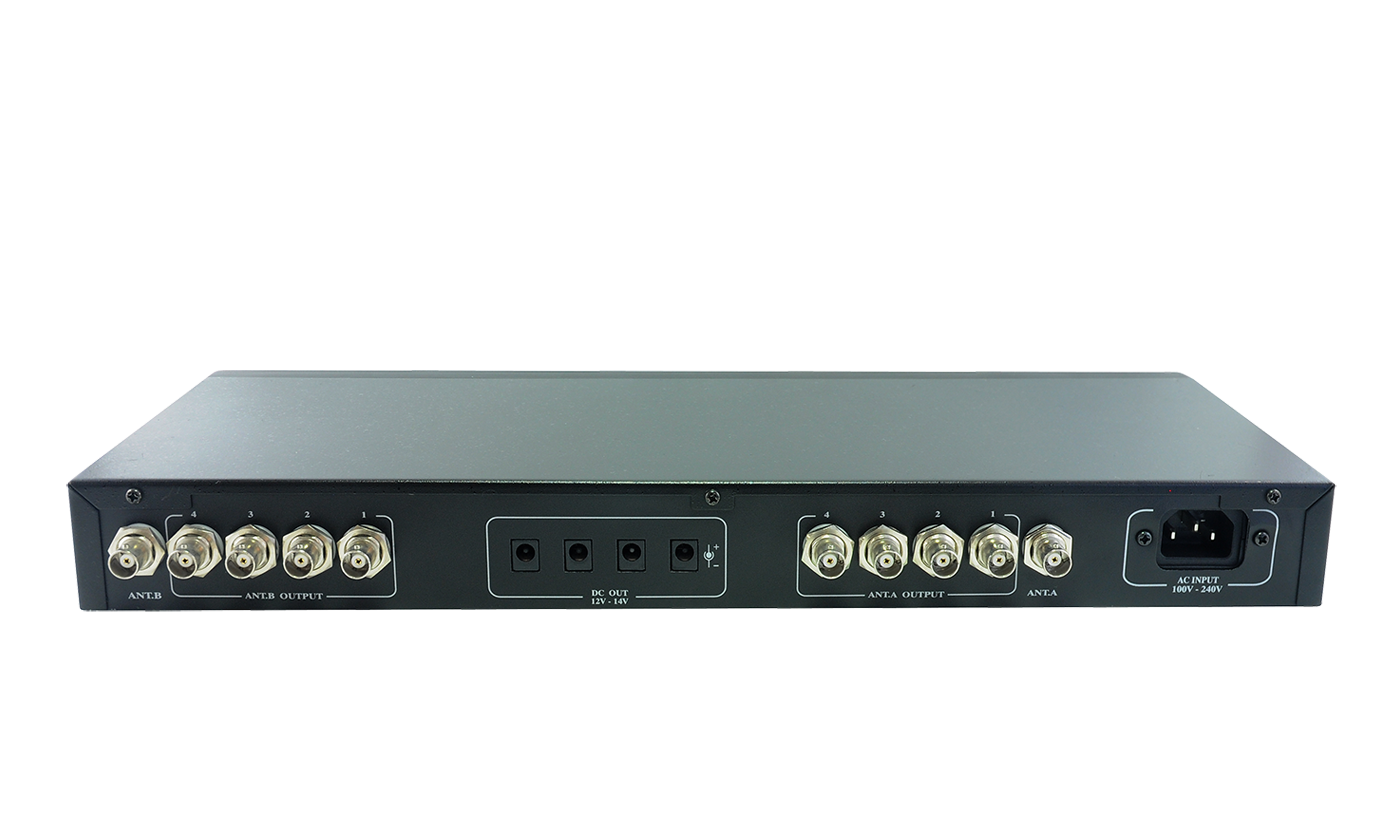

Connector	2 sets of 1-to-4 active BNC outputs (female); 1 pair of active BNC intputs (female). 50 Ω Impedance.
Power supply	100-240 V / 60 Hz
Power output	12-15 V / 3.6 A
Dimensions (mm)	420 x 198 x 44
Weight (kg)	1.56
