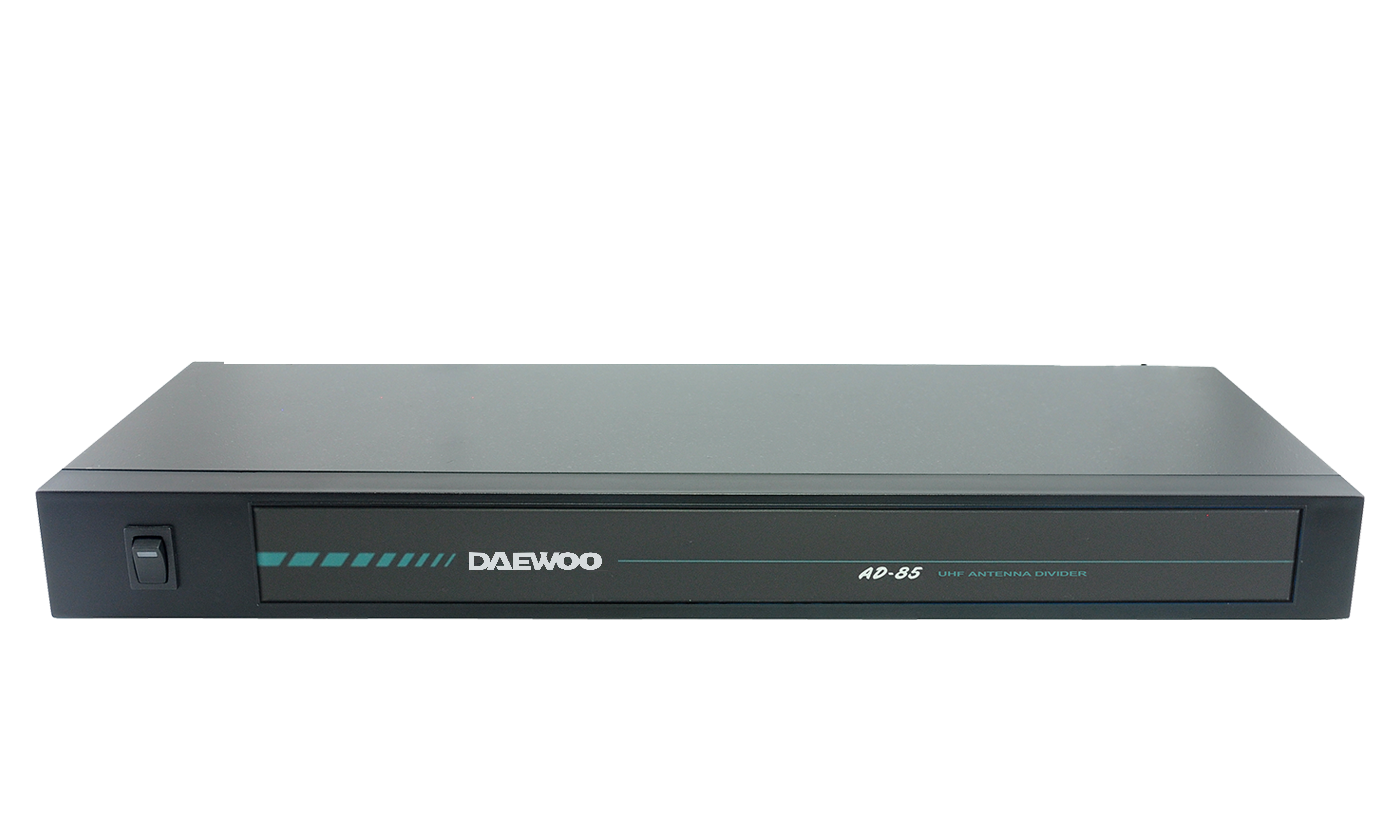

DWS-AD85

UHF Wideband 4-Channel Antenna Divider

The DWS-AD85 is a wideband four-channel antenna splitter designed to integrate four sets of wireless receiver antennas. Covering UHF 500-700 MHz or 700-960 MHz frequency bands, it ensures stable and reliable signal distribution, making it ideal for various professional audio applications.

Instruction Manual
Enquiry

Tech specification

Model	DWS-AD85
Frequency range	UHF 500 – 700 MHz or 700 – 960 MHz
Gain	0 dB ± 3 dB

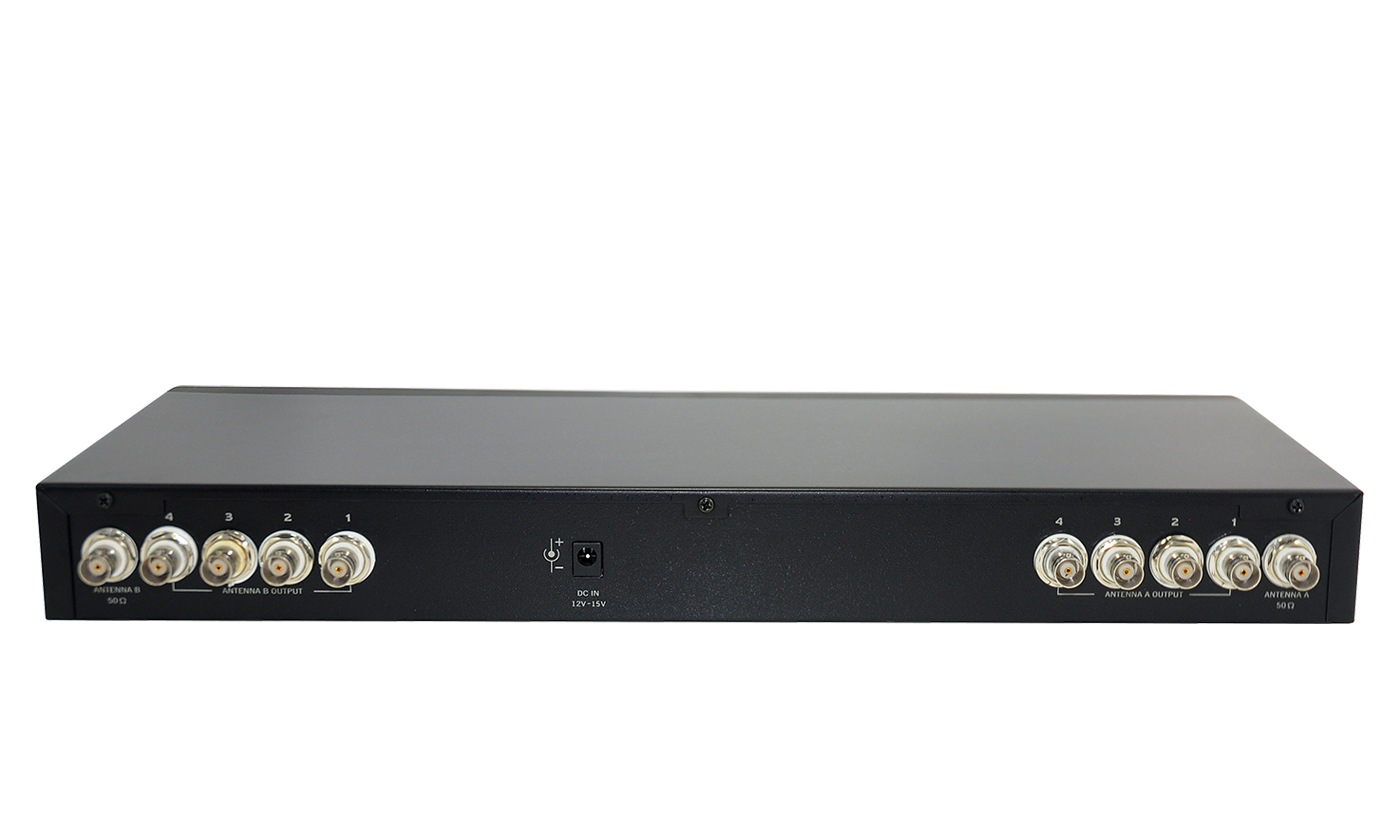

Connector	2 sets of 1-to-4 active BNC outputs (female); 1 pair of active BNC intputs (female). 50 Ω Impedance.
Power supply	12 – 15 V DC
Dimensions (mm)	420 x 198 x 44
Weight (kg)	1.5
