FEATHURES
· SOUND-LINK digital ring network technology ensures full-digital signal transmission and processing with high-fidelity sound quality, featuring lossless audio transmission technology, a 48K audio sampling rate, and a 20Hz–20KHz frequency response.

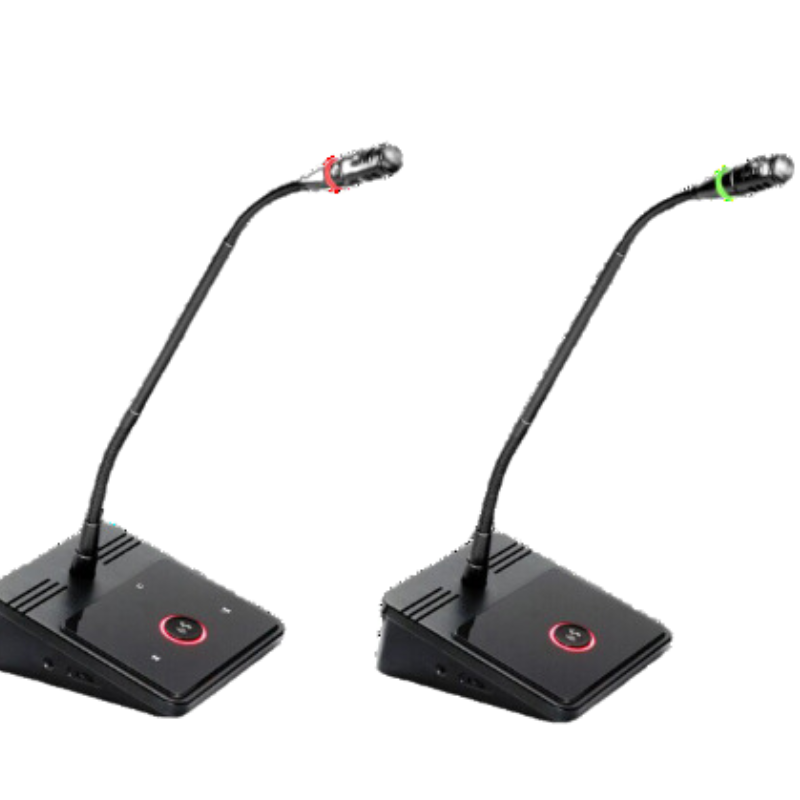

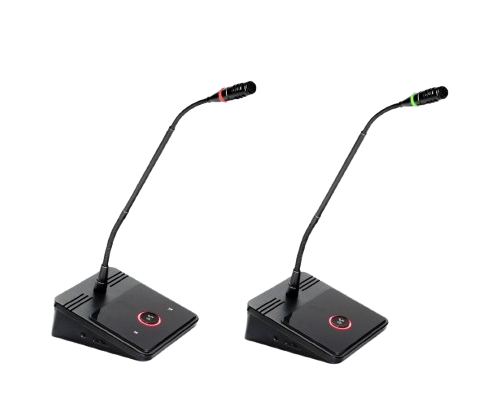

· All microphone units support audio with ID-independent output and work seamlessly with voice recognition systems for voice role separation.
· A single CAT5e cable can transmit up to 64 audio channels along with other signals, simplifying installation and connectivity.
· One conference controller can independently control and merge up to four conference rooms, while cascading multiple controllers allows merging and separation of larger rooms.

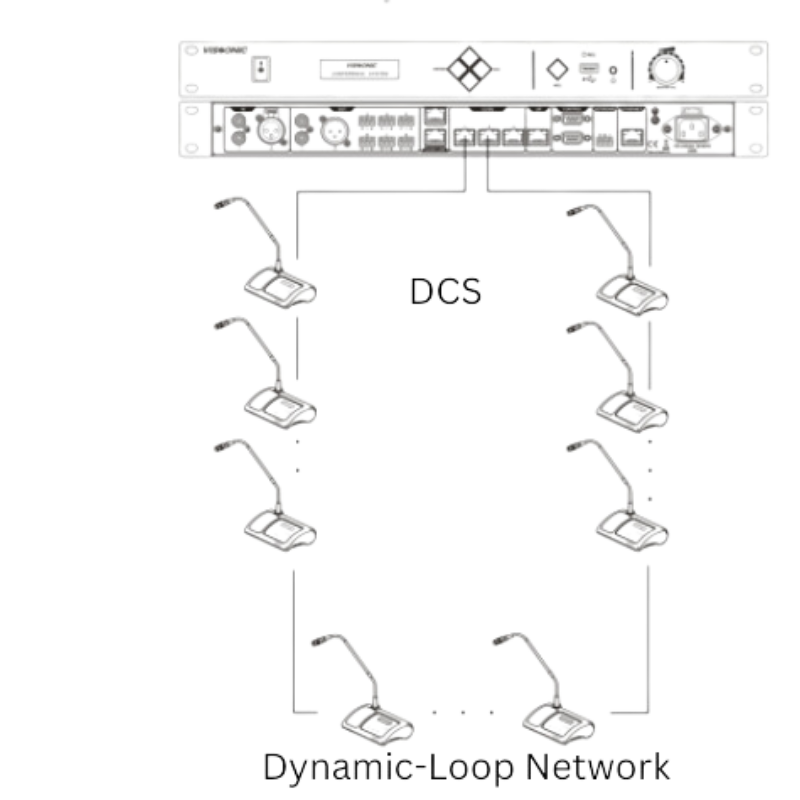

· The "Dynamic-Loop-Network" connection ensures the system remains functional even during discussion unit changes or malfunctions.
· The system can drive 2x120W Poe speakers and, with an extension main unit, support up to 16 Poe speakers; an optional DANTE output module enables integration with other DANTE equipment.
· Features like USB recording, controller monitoring, advanced noise cancellation, and echo cancellation ensure clear recordings and smooth remote two-way calls with other conference controllers or third-party video conferencing terminals.
· Sound output is divided into zones, automatically adjusting volume based on microphone positions for long-distance pickup without feedback.
· The conference controller provides a 16-segment equalized EQ for sound field adjustment and includes features like automatic volume gain control (AGC), automatic feedback suppression (AFC), and auto-mix technology for seamless audio quality.
· The sensitivity of each unit microphone can be adjusted independently, along with an 8-segment equalizer EQ for precise control.
FUNCTIONS
· The full-digital extension main unit can expand the system to support up to 5200 discussion units.
· Only wired discussion units connect to the controller, allowing quick and easy addition of meeting delegates.
· The "Dynamic-Loop-Network" assigns a unique ID to each unit independently, preventing ID conflicts and ensuring stable operation.
· The system provides up to 8 audio output channels with XLR, RCA, or Phoenix connectors, compatible with simultaneous interpretation systems.
· It includes 2 audio input channels (XLR or RCA) for local audio or remote video-conferencing inputs.
· Adding an audio input box allows connection to condenser microphones, dynamic microphones, or interpretation and partitioned output devices.
· The controller integrates with a PC via TCP/IP for seamless communication and system control.
· A built-in multi-way internal communication function enhances collaboration during meetings.
· The system operates on a wide voltage range of 100V–240VAC, suitable for various power sources.
· Flexible microphone options and connectivity provide more choices for users.
| Model | DCS-DOC | DCS-DOD |
| Power | 100V / 240V AC |
| Power consumption | 12W |
| Maximum power consumption | 150W |
| Frequency Response | 20Hz ~ 20KHz |
| Noise ratio | 80dB |
| Total harmonic distortion | 0.05% |
| Channel Crosstalk | 80dB |
| Dimensions (mm) | 481L x 265W x46H |
| Colour | Black |
Accessories
DCS-MDA
DCS-M600
DCS-M485
DCS-M410
DCS-M330
DCS-M220
