Features
· The "Daisy-Chain Network" ensures the system works even with changes or malfunctions in units. Microphone sensitivity and an 8-band equalizer are independently adjustable.
· The conference controller outputs a 16-band equalized EQ for sound field control with AGC, AFC, and auto-mix technology.
· The system adjusts sound output by zones for clear pickup without feedback.
· Echo cancellation, remote communication, USB recording, and advanced noise cancellation ensure clarity.
· The system supports date and time management and countdown speech.
· An optional DANTE output module integrates with other DANTE devices.
· The system can drive up to 16 PoE speakers through an extension unit, with 2x120W PoE speaker support
Functions
· The system adheres to international standards for conference equipment.
· Its "Daisy Chain" design ensures each unit is assigned a unique identifier, preventing any conflicts.
· Only wired discussion units can be connected to the DCS-1000 main controller, allowing quick and easy addition of participants for seamless meeting management.
· The system provides 2-channel audio input through XLR or RCA connectors, supporting both local audio and remote video conferencing inputs.
· It offers a maximum of 8-channel audio output via XLR, RCA, or Phoenix connectors, suitable for simultaneous interpretation or partitioned output.
· The system allows for additional microphone connections through an audio input module, enabling the use of both condenser and dynamic microphones for expanded user options.
· It includes a built-in multi-way internal communication feature. Communication between the controller and PC is facilitated via TCP/IP.
· RS232 central control enables the management of microphone switching, priority, volume, and other operational parameters, RS232 or RS485 interfaces enable the integration of PELCO/VISCA protocol for camera auto-tracking.

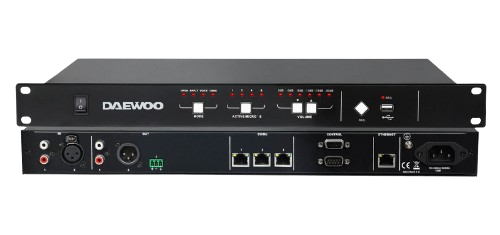

| Model No. | DCS-1000 |
| Power | 100V / 240V AC@50/60Hz |
| Static power consumption | 12W |
| Maximum power consumption | 150W |
| Unit power supply | POE48VDC |
| RS-232 control | 1x9 pin sub female socket 1x9 pin sub-D male socket |
| Ethernet control | RJ45 connect computer control |
| Frequency Response | 20Hz ~ 20KHz |
| THD | 0.05% |
| Channel Crosstalk | 85dB |
| Noise ratio (S / N) | 96dBA |
| Dynamic Range | 94dB |
| Dimensions (mm) | 481L x 265W x46H |
| Weight | 3kg |
Compatible
DCS-DEC | DCS-DED
DCS-DFC | DCS-DFD

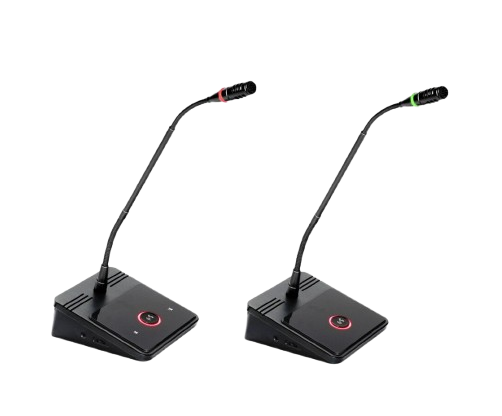

DCS-DOC | DCS-DOD
