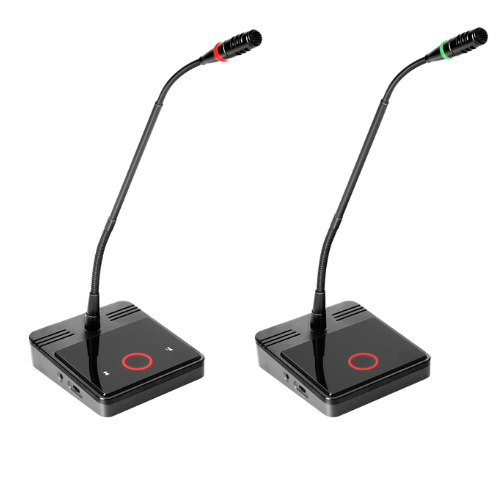

FEATHURES
· The unique SOUND-LINK digital ring network technology achieve full-digital signal transmission andprocessing.
· Stylish, low profile design with touchable interface.
· Standard CAT5e and RJ45 connectors are used in CLEACON series to provide more convenient on project and maintenance.
· The cable connection of MIC units are either hiding underneath or from the rear of the unit, makes it, convenient for different request of installation.
· Internal high-fidelity loudspeaker.
· Head-set interface in both sides with volume adjust.
· Line-in interface which allows microphone or other line-in device like cell phone, laptop to pass audio through to perform teleconference.
· “Dynamic-Loop-Network” connection makes the system always working perfectly.
· The unique SOUND-LINK digital ring network technology achieves full-digital signal transmission andprocessing, completely avoiding the RF interference from cell phone or similar devices.
· “Dynamic-Loop-Network” connection makes the system always working perfectly.
FUNCTIONS
· Digital extension main unit allows expansion to up to 5200 discussion units.

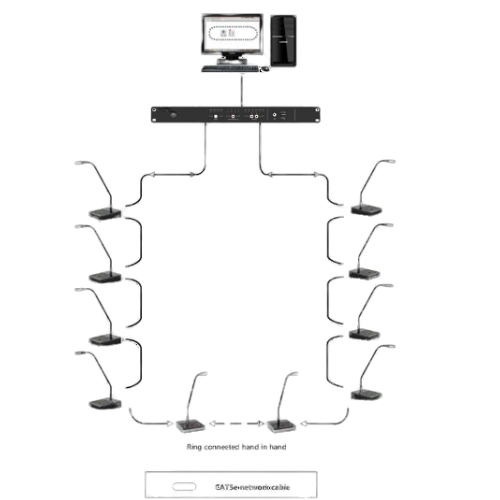

· "Loop-Network" topology ensures independent ID assignment for each unit to prevent conflicts.
· Wired discussion units connect easily to the controller for quick delegate additions.
· Full-digital networked DSP conference system with 2-channel audio inputs (XLR or RCA) for local or remote video-conferencing.
· Supports up to 8-channel audio outputs (XLR, RCA, or Phoenix) for simultaneous interpretation or partitioned audio output.
· Optional audio input box connects condenser or dynamic microphones for added flexibility.
· Built-in multi-way internal communication with TCP/IP connectivity between controller and PC.
· RS232 central control manages microphone switching, priority settings, volume adjustments, and other controls.
· RS232/RS485 connections support PELCO/VISCA protocol for automatic camera tracking.
· Hot plug-and-play capabilities with automatic recovery features.
· Operates reliably across a wide voltage range (100V to 240VAC).

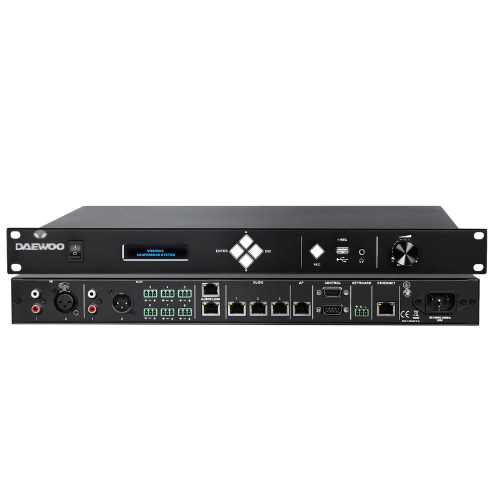

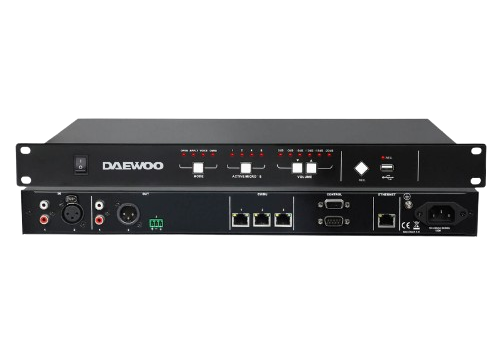

· Conference controller provides essential settings like microphone management, priority configurations, and volume controls without PC software.
| Model | DCS-DEC | DCS-DED |
| Power | 100V / 240V AC |
| Power consumption | 12W |
| Maximum power consumption | 150W |
| Frequency Response | 20Hz ~ 20KHz |
| Noise ratio | 80dB |
| Total harmonic distortion | 0.05% |
| Channel Crosstalk | 80dB |
| Dimensions (mm) | 481L x 265W x46H |
| Colour | Black |
Accessories

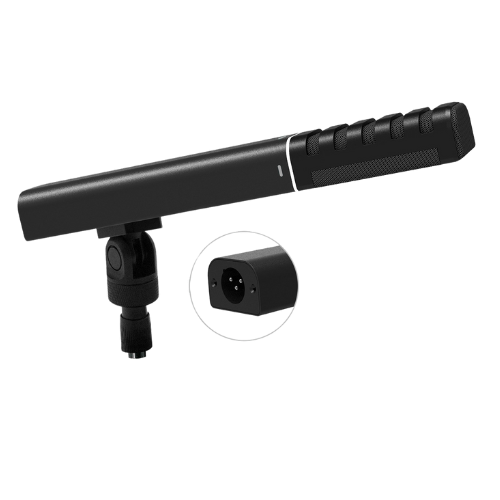

DCS-MDA

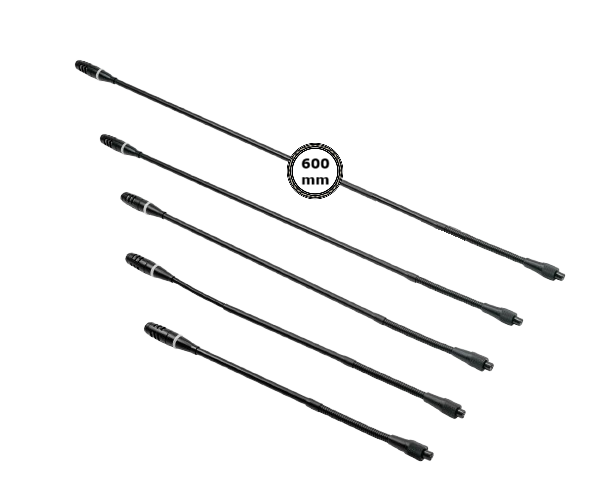

DCS-M600

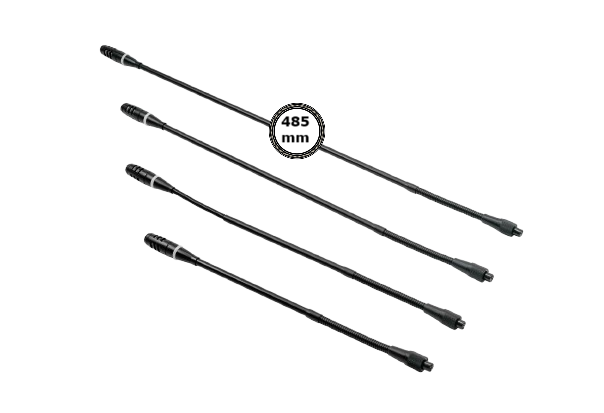

DCS-M485

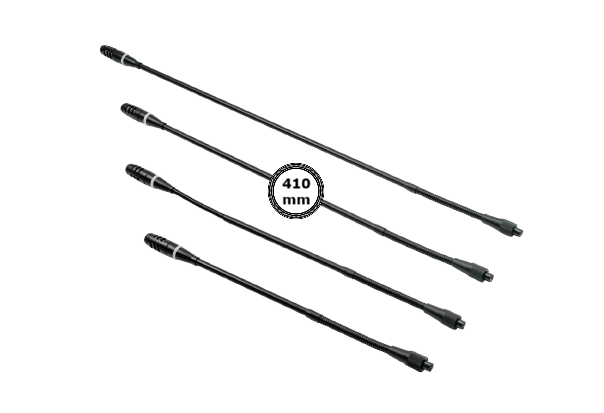

DCS-M410

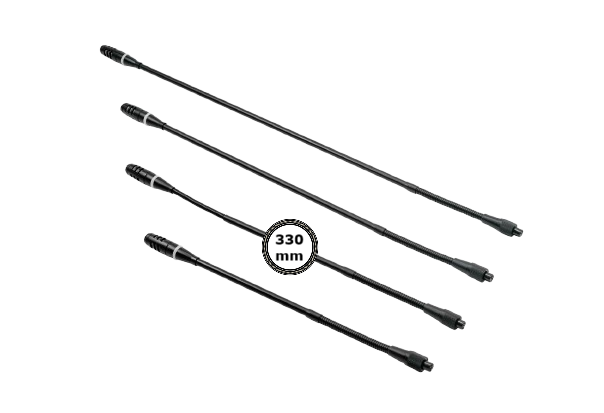

DCS-M330

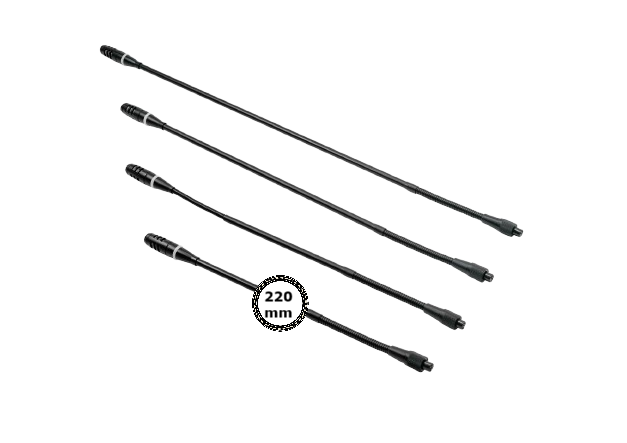

DCS-M220
