FEATHURES
· Supports 5 channels of 4K video signal capture and encoding.
· Enables end-to-end 4K resolution from capture and recording to output.
· Provides up to 5 HDMI inputs and 4 HDMI outputs for seamless video conferencing and live broadcasting.
· Equipped with a 2-inch LCD display for real-time status monitoring.
· Displays recording and broadcasting status, channel information, network data, storage details, and customizable logos.
· Compact and portable design for easy setup and transport.
· Integrates high-definition video, audio, USB, and other input/output interfaces.
· Supports both HD and SD signals with automatic signal recognition.
· Offers customizable layout patterns for flexible video arrangement.
· Allows simultaneous recording of video, audio, and computer screen signals.
· Includes local preview and playback functionality.
· Generates MP4 video files for wide compatibility.
· Supports PC-based management and control.
· Enables camera auto-tracking and recording integration.
· Supports live broadcasting over LAN or Ethernet.

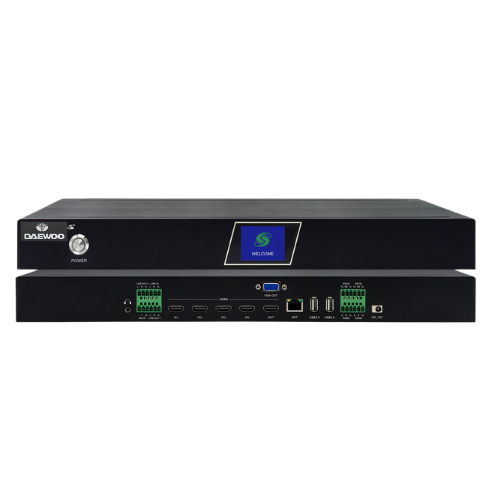

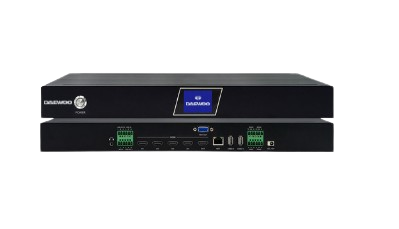

| Model | DCS-CTR2 |
| Power supply | DC 12V 3A, adapter |
| Chassis Specifications | 1U |
| Size | 482 (L) × 270 (W) × 45 (H) mm |
| Weight | 2kg |
Compatible
DCS-CTR5
Accessories
