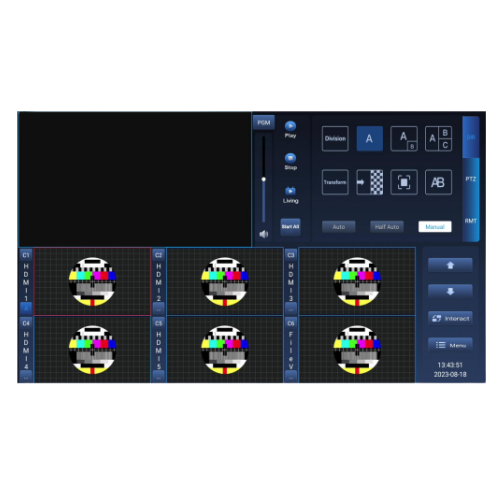

FUNCTIONS
· Channel Number Indicators: The device should allow users to turn on or off the channel number indicators as needed. This can be controlled via physical buttons, RS232, Ethernet, or software commands.
· Seamless Scaler Switcher: The system must support a 6x1 seamless scaler switcher with a maximum output resolution of 1080P at 60Hz. Switching between input sources should be smooth, with no jitter or blank screens.
· Image Freezing Function: Users should be able to freeze the image for a duration between 1 to 6 seconds. If the freezing time is set below 0.5 seconds, the function should automatically turn off.
· RS232 and Ethernet Integration: The device should include RS232 and Ethernet ports to enable external control and integration with a central controller.
· Camera Auto-Tracking: The system must be compatible with CLEACON and CLASSIC-D series conference main units to support automatic camera tracking functions.

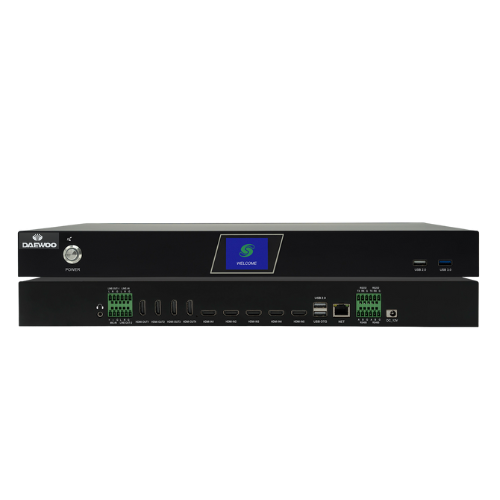

FEATHURES
· The device captures and encodes up to five channels of 4K video signals, ensuring high-quality video processing.
· It maintains full 4K resolution from the point of capture to recording and output for a seamless experience.
· It includes five HDMI inputs and four HDMI outputs, allowing multiple video conference displays.
· A 2-inch LCD screen provides real-time monitoring of recording and broadcasting status.
· The screen also displays important details such as channel information, network status, and storage capacity.
· The system integrates high-definition video, audio, USB, and other input/output interfaces for flexible connectivity.
· It features automatic detection of HD and SD signals, adjusting the layout dynamically.
· Users can record video, audio, and computer screen signals while also enabling local preview and playback.
| Model | DCS-CTR5 |
| Power supply | DC 12V 3A, adapter |
| Chassis Specifications | 1U |
| Size | 482 (L) × 270 (W) × 45 (H) mm |
| Connector | BNC female connectors |
| Pixel bandwidth | 165MHz |
| Weight | 3kg |
