FEATHURES
· The system is compact and portable for easy transport and setup.
· It supports both high-definition and standard-definition video and audio signals with automatic detection.
· Multiple input and output interfaces, including VGA and USB, provide versatile connectivity.
· Simultaneous recording of video, audio, and computer screen signals is possible with flexible layout options.
· Local preview and playback functions allow real-time monitoring of recordings.
· A built-in 2-inch LCD screen displays key information such as recording status, channel activity, and network details.
· MP4 video file generation ensures compatibility with various playback devices.
· Remote management and control are available through a PC for enhanced functionality.
· Dual output options, including HDMI and VGA, support video conferencing and directed interface outputs.

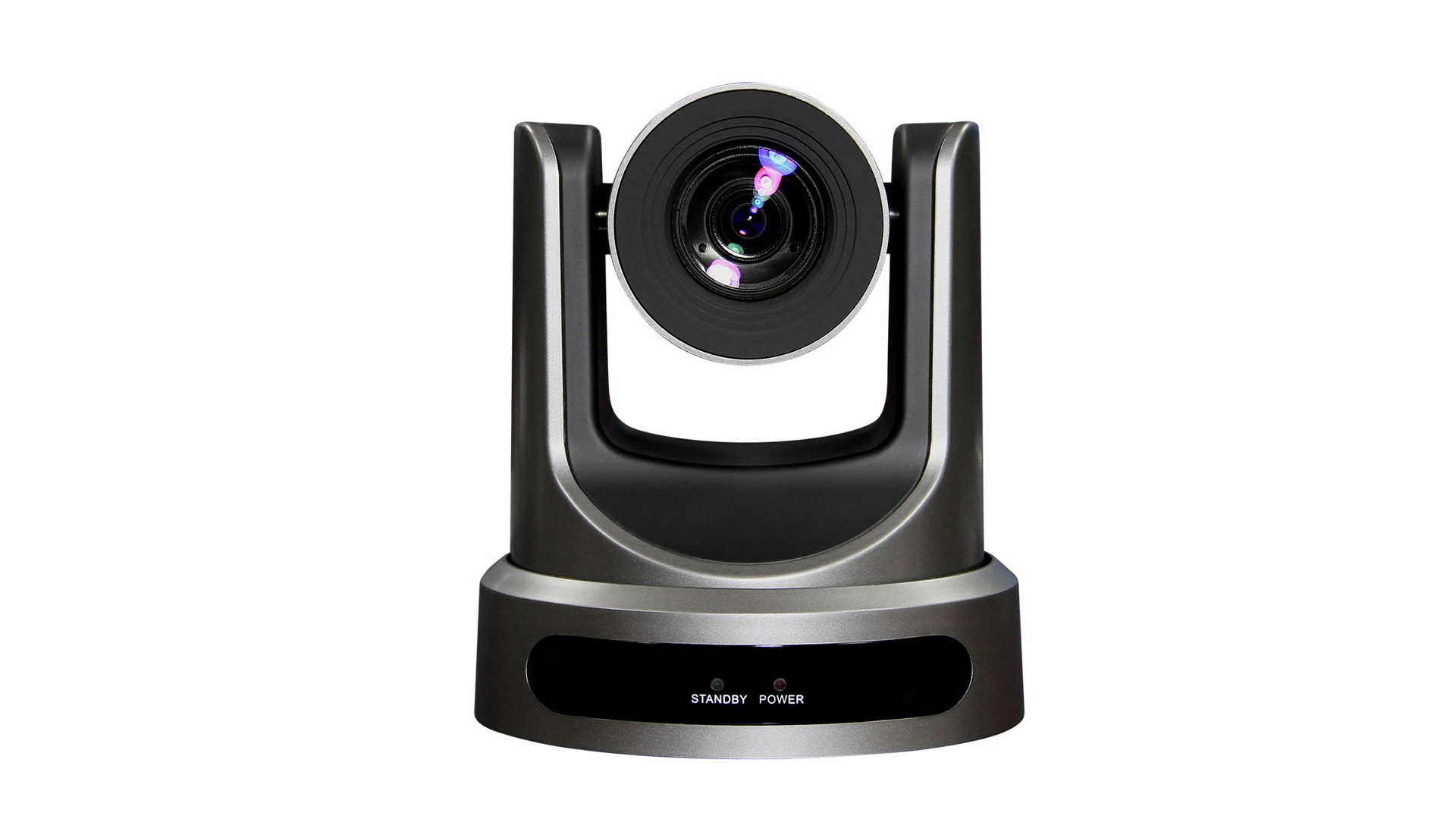

· Automated camera tracking is supported when integrated with compatible conference controllers.
· Live broadcasting over LAN or Ethernet enables real-time sharing.
FUNCTIONS
· Supports a maximum output resolution of 1080P@60Hz.
· Enables seamless switching without jitter or screen blanking.
· Provides an adjustable image-freezing function with a duration range of 1 to 6 seconds.
· Allows a minimum freezing time of 0.5 seconds, with durations below this disabling the feature.
· Includes RS232 and Ethernet ports for enhanced connectivity.

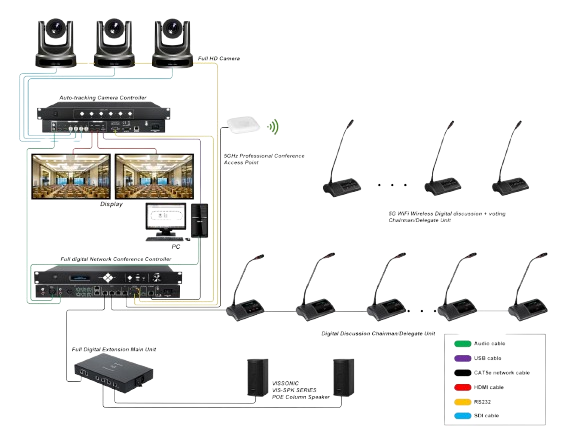

· Integrates with central control systems and conference systems.
· Supports automated camera tracking functionality.

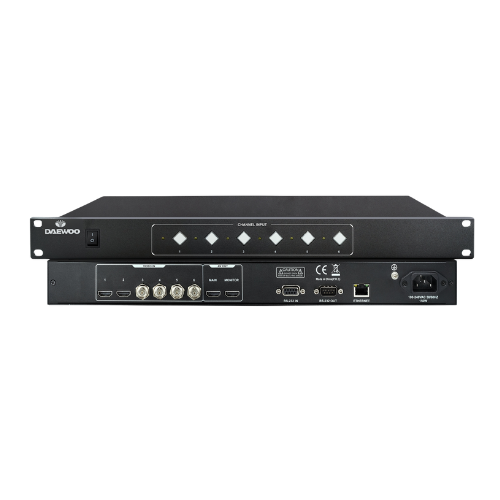

| Model | DCS-CT6 |
| Power | DC 12V 3A |
| Buttons | Soft-touch silicone buttons |
| Power Consumption | 0.6W max |
| Operating Humidity | 20% to 80% (non-condensing) |
| Display | 128×32 LCD |
| Signal format/ Input(s) | SDIx4 | HDMIx2 |
| Pixel bandwidth | 165MHz |
| Output Connector | HDMI-A & Mirror VGA |
| Dimensions (mm) | 483L x 260W x43.6D |
| Weight | 3kg |
Accessories
