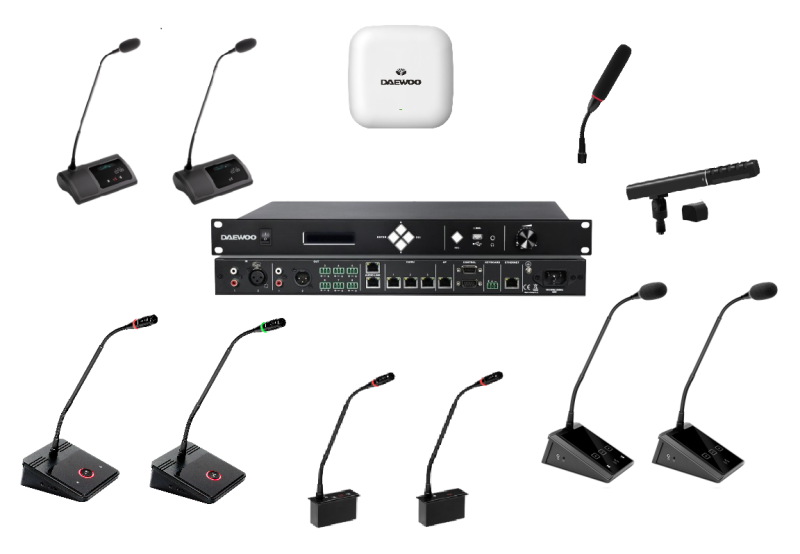

FEATHURES
· The system delivers uncompressed audio with exceptional clarity across a frequency range of 20Hz to 20kHz.
· It uses professional-grade microphones for high-quality sound capture.
· Robust 128-bit encryption ensures secure communication.
· Advanced filtering and hidden security layers prevent unauthorized access and interception.

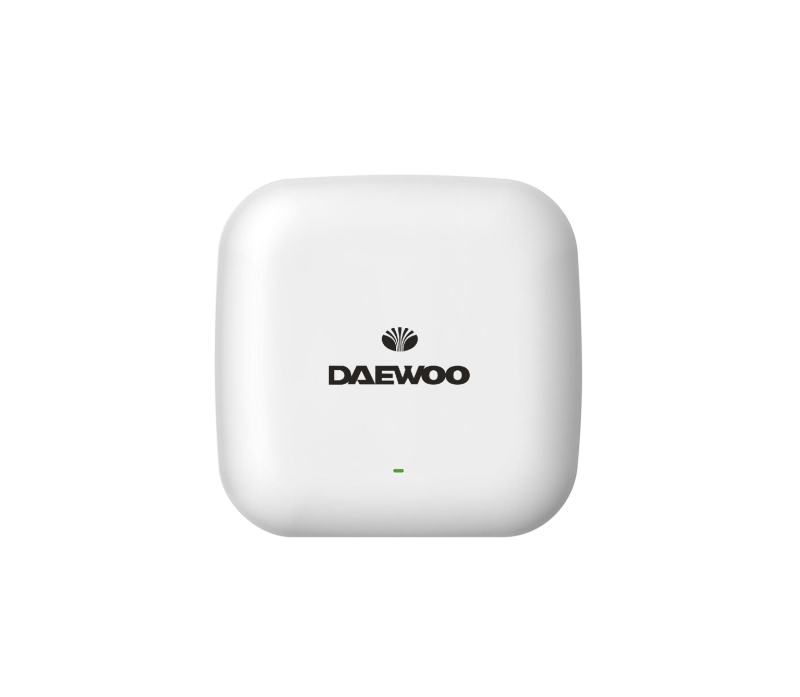

· The wireless module supports simultaneous operation of up to six microphones.
· Integrated control interfaces include RS485, RS232, and IP for protocol communication.
· Automated camera tracking is enabled when integrated with compatible video systems.
· The built-in high-performance speaker features an automatic mute function during microphone use.
· Feedback is prevented for a seamless audio experience.
FUNCTIONS
· The system supports expansion to 5200 discussion units when connected to a full-digital extension module.
· Advanced loop-based connection architecture assigns unique IDs to each unit, ensuring seamless operation without conflicts.
· It supports both wired and wireless discussion units, allowing quick and efficient addition of participants.
· Up to eight wireless microphones can operate simultaneously using adaptive interference avoidance technology.
· The wireless technology complies with IEEE 802.11n Wi-Fi standards for 5GHz, ensuring robust performance.
· The system includes two audio input channels (XLR or RCA) for local or remote video conferencing.
· It provides up to eight audio output channels (XLR, RCA, or Phoenix) for simultaneous interpretation or zone-based output.
· Integration options include support for condenser or dynamic microphones, offering flexibility for user needs.
· Built-in multi-way internal communication enhances functionality.
· TCP/IP connectivity enables seamless integration between the controller and a PC.
· RS232 central control facilitates microphone management, priority settings, and volume adjustment.
· RS232 or RS485 interfaces support protocols for automated camera tracking.
· Features such as hot plug-and-play, auto-recovery, and support for a wide voltage range from 100V to 240VAC ensure reliable system performance.
| Model | DCS-AP5 |
| Power | 100V / 240V AC |
| power consumption | 12W |
| Maximum power consumption | 150W |
| Frequency Response | 20Hz ~ 20KHz |
| Noise ratio | 96dBA |
| Total harmonic distortion | 0.05% |
| Channel Crosstalk | 85dB |
| Dynamic range | 94dB |
| Ethernet control | RJ45 connected to PC |
| Dimensions (mm | 483L x 260W x43.6H |
| Weight | 3kg |
Compatible

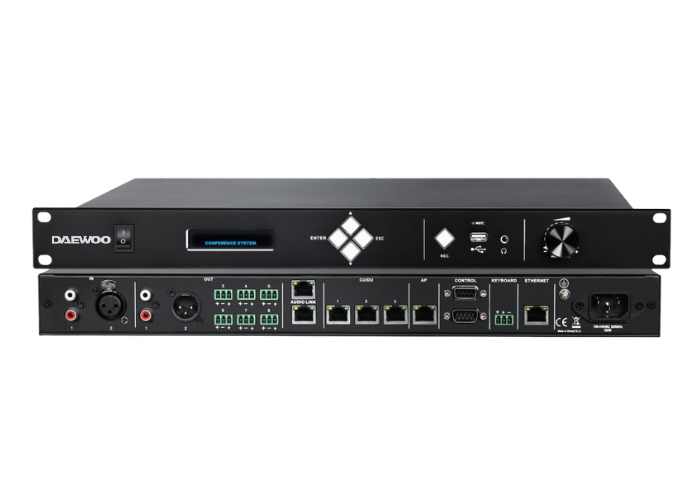

DCS-2000W
