FEATHURES
· The SOUND-LINK digital ring network technology enables full-digital signal transmission and processing, using a single CAT5e cable to transmit up to 64 audio channels and other signals.
· All microphone units support audio and ID-independent output, working with voice recognition systems for voice role separation.
· High-fidelity sound quality is achieved through lossless audio transmission technology, with a 48KHz sampling rate and a frequency response of 20Hz–20KHz.
· A single conference controller can manage the independent control and merging of up to four conference rooms, with the option to cascade multiple controllers for larger room configurations.
· The redundant loop network connection ensures continuous system operation even with the addition or malfunction of conference units.
· Each unit's microphone sensitivity and 8-segment equalizer (EQ) are independently adjustable, while the conference controller provides a 16-segment EQ output for sound field adjustment.
· Features like pressure limiting, noise gate detection, automatic gain control (AGC), automatic feedback suppression (AFC), and auto-mixing technology are included for superior sound management.
· The system offers zone-based sound output with automatic adjustments for microphone placement, supporting long-distance pickups without feedback and providing echo cancellation for clarity.
· Two-way remote real-time communication is supported with other controllers or third-party video conferencing systems, along with USB recording, controller monitoring, and advanced noise cancellation for high-quality recordings.
· The system supports date and time management with a countdown speech feature, while an optional DANTE output module integrates with other DANTE-compatible equipment.
· It can drive 2x120W POE speakers directly and supports up to 16 POE speakers via extension modules.
FUNCTIONS
· The system can expand to support up to 5200 discussion units using a "Daisy-chain-Network" connection.
· Each unit is independently assigned an ID to avoid ID conflicts.
· Only wired discussion units can connect to the controller for fast and easy addition.
· Provides two-channel audio input with XLR or RCA type for local audio or remote video conferencing input.
· Offers up to 8-channel audio output via XLR, RCA, or Phoenix type, suitable for simultaneous interpretation or partitioned output.
· Supports the addition of an audio input box to connect other condenser or dynamic microphones, giving users more options.
· Built-in multi-way internal communication function enhances system communication.
· Facilitates TCP/IP connection between the controller and a PC.
· RS232 central control enables microphone switch, priority, and volume adjustments.
· Supports RS232 or RS485 for sending PELCO/VISCA protocols to enable camera auto-tracking functionality.
· Features hot plug-and-play capability with an auto-recovery function.
· Operates on a voltage range of 100V~240VAC.
· Without PC software, the conference controller can still perform essential settings.
| Model | DCS-DMC-D |
| Power | 100V / 240V AC |
| Power consumption | 12W |
| Maximum power consumption | 150W |
| Frequency Response | 20Hz ~ 20KHz |
| Noise ratio | 80dB |
| Total harmonic distortion | 0.05% |
| Channel Crosstalk | 80dB |
| Dimensions (mm) | 481L x 265W x46H |
| Colour | Black |

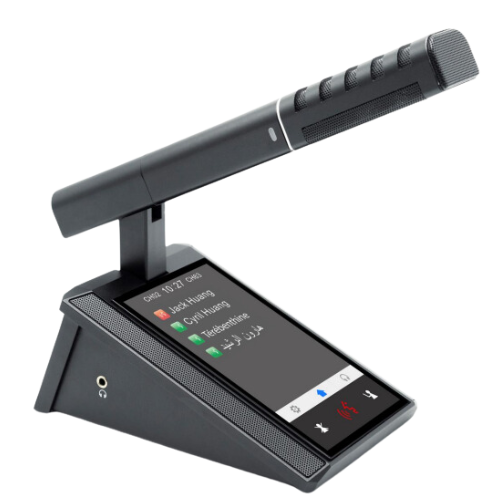

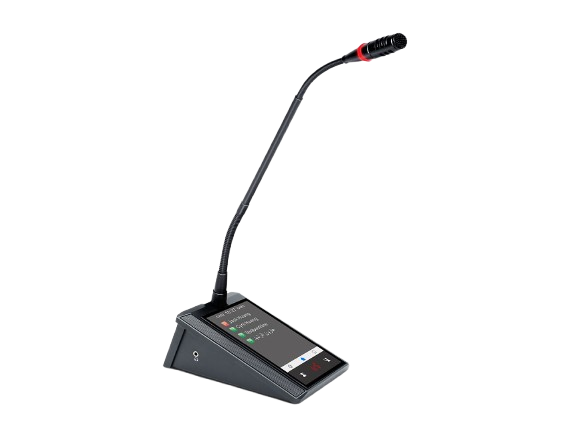

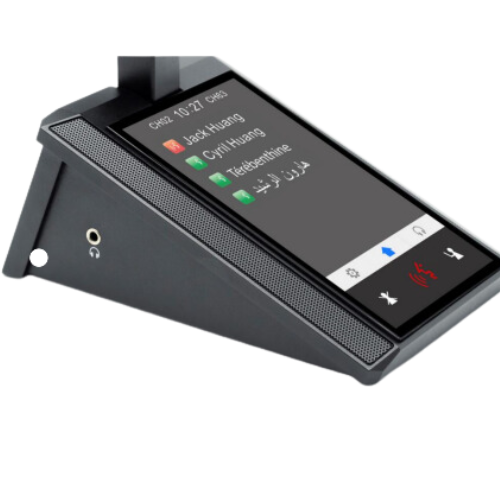

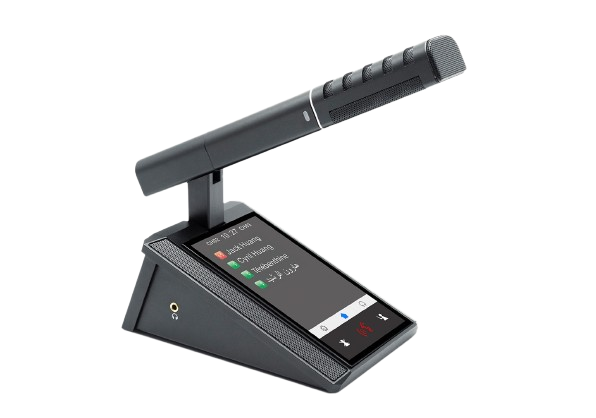

Compatible
DCS-DFC | DCS-DFD
