FEATHURES
· The system accommodates up to 64 interpretation channels, including the floor channel, and supports up to 1,000 translation units.
· It features digital audio technology with built-in high-speed DSP processing, offering a 48 kHz sampling rate and a frequency response of 30 Hz to 20 kHz.
· The metal casing is designed to resist interference from RF signals, ensuring reliable performance.
· Hot-swappable and plug-and-play functionality allow for easy installation and maintenance.
· The detachable microphone design provides flexibility for different usage scenarios.
· Users can adjust the volume of speakers and headphone jacks separately for a customized experience.
· The system supports both direct and relay interpretation, providing versatility for multilingual events.
· A channel interlock feature ensures that only one microphone can be active per channel at a time.
· Two interpreters can use a single unit simultaneously, with separate headsets and individual volume controls.
· The system offers Interlock and Override modes to suit different booth operation needs.
· The COUGH key allows users to mute the microphone temporarily, while the SLOW button ensures smoother communication.
· Seven quick input buttons and A-B-C shortcuts enable rapid selection of input and output channels.
· Language and system settings can be configured directly from the interpreter desk menu.
· The system supports IC card authentication and includes a timing function to track interpretation duration.
· Additional features include SMS functionality and a tea request option for convenience during sessions.
· The system complies with ISO 20109, ISO 2603, and ISO 4043 standards, ensuring it meets global requirements.

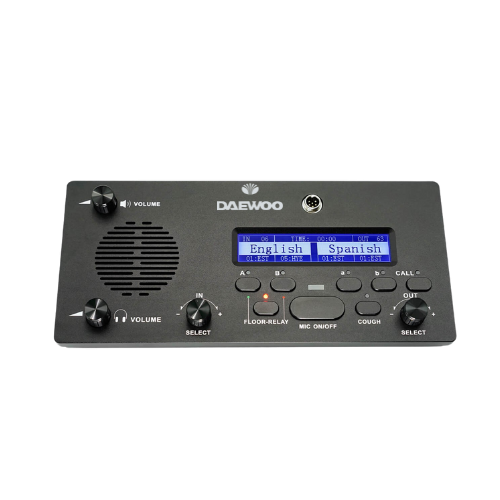

FUNCTIONS

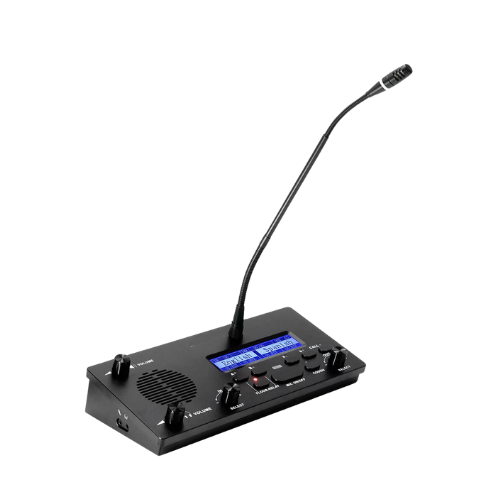

· The microphone is mounted on a flexible stem and includes a light ring for status indication.
· Headphone and speaker volume can be adjusted using separate control knobs.
· Buttons 1 to 7, with an LCD display, allow quick selection of input channels and display corresponding channel numbers and listening languages.
· A-B-C channel selection keys, with an LCD display, enable fast selection of output channels and languages for translation output.
· The IN knob, with an LCD display, allows quick switching between the floor language and selected channels.
· The OUT knob, with an LCD display, facilitates fast switching between output channels.
· The microphone activation key includes an LED status indicator.
· A COUGH key temporarily mutes the microphone when pressed.
· The FLOOR-RELAY key enables quick switching between the floor language and relay language.
· A call key provides two-way voice communication between the interpreter and the operator.
Interconnection Ports
· Two 3.5 mm earphone jacks and two 3.5 mm microphone jacks.
· Two RJ45 ports for network connections.
· Main power input and output ports with cascading capability and male/female connectors.
· HDMI output interface for additional connectivity.
| Model | DCS-INT-S |
| Power | DC48V from main unit or adaptor |
| Frequency response | 20Hz~20KHz |
| Power consumption | 3W |
| Input impedance | 2.2kOhm |
| Display | 320x64 dot |
| Dimension h x w x d (mm) | 280x128x55 |
| Earphone load | 8ohm |
| Sensitivity | -46dBV/pa |
| Transducer | Electret-condenser |
| Weight | .1.5kg |
| Directivity 0°/180° | 20 dB(1 kHz) |
