FEATHURES

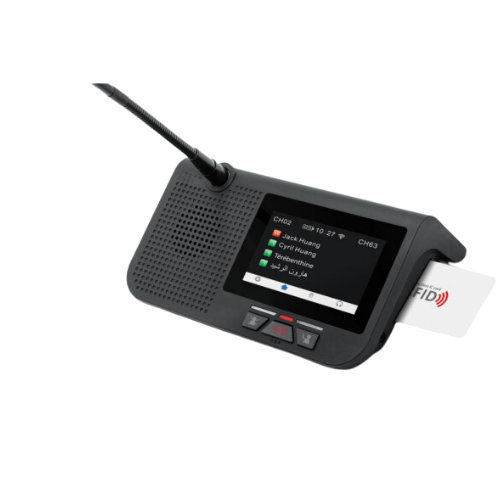

· The conference system features a 4.3-inch capacitive color touch screen with a stylish and low-profile design, providing a modern and intuitive user interface.
· It has a built-in NFC card reader, enabling quick and secure identification of participants.
· The all-in-one touch screen conference unit can be configured as a chairman unit, delegate unit, VIP unit, or dual delegate unit, depending on the needs of the meeting.
· It supports dual communication modes with 5G WiFi wireless and wired network connections, ensuring uninterrupted meetings.
· The system offers three charging methods, including replaceable battery power supply, microphone base charging, and wired POE network charging.
· An intelligent visual battery management system is available via the unit display screen, web server, or PC software.
· Wireless communication allows the entire system to be set up in a few minutes and quickly packed away after the meeting.
· The detachable battery pack is easy to replace and charge, providing up to 20 hours of runtime on a full charge.
· The system includes an internal high-fidelity loudspeaker, delivering clear and powerful audio.
· It supports pluggable microphones with long-range sound pickup capability and options for different microphone lengths.
· Headset interfaces with volume controls are provided on both sides, along with a line-in interface for connecting external devices like smart phones or laptops for teleconferencing.
· The system uses full-digital signal transmission and processing, completely avoiding RF interference from cell phones or similar devices.
· A timer and clock display is available on the screen, allowing users to set speaking time limits for delegates, with reminders or automatic microphone deactivation.
· The system is easily expandable, allowing users to integrate additional functionalities through software modules.
· It is built with proven, reliable technology, ensuring an extremely consistent read range.
· The system provides fast processing and data communication, enhancing efficiency during meetings.
· The device offers a true credit card thickness, combining portability with advanced functionality.
FUNCTIONS
· Compact, lightweight design with a 4-inch read range.
· High-speed transactions under 100ms with long data retention.
· Reliable 5 GHz Wi-Fi and uncompressed audio at 20Hz–20kHz.
· Secure 128-bit encryption and WAP2 connection.
· Supports 40+ wireless units per AP, expandable coverage.
· Auto camera tracking with integrated control.
· Directional microphone with LED indicator and anti-wind foam.
· MIC control buttons and built-in high-fidelity speakers.
· Headset interfaces with volume adjustment.
· Advanced sound processing (AGC, AFC, ANC).
· Optional modules for voting, NFC sign-in, and interpretation.
· Multiple discussion modes with real-time display and timer.
· Detachable battery with 20-hour runtime and wireless upgrades.
| Model | DCS-IC |
| Power | 48V DC |
| Frequency response | 20~20000Hz |
| Power consumption | 1.4W |
| Maximum power consumption | 3.8W |
| Dynamic range | 90 dB |
| S / N ratio | ≥96dB |
| Sensitivity | -46 dBV / Pa |
| Input impedance | 2kΩ |
| Relative humidity | 90% |
| Weight | 1.0 KG |
